My first attempt at a 3D game. I used simple game programming library Raylib for rendering and I/O. Project is written entirely in Zig, seems like a good combination with Raylib (which is written in C).

The game is mainly just a playground of stuff I was testing out. You can build, delete or edit simple structures, and there is a short obstacle course that you can try to jump trough - but it proved to be quite a challenge for some people.

The most interesting achievment I made in this project was the implementation of my custom collision + physics system. It allows for player-environment, environment-player interactions. The implementation is completely my own and is based on the idea of Minkowski sum, however I actually use just an aproximation of the sum, as that makes the system simpler and in some cases even more intuitive for the player. The player is represented by multiple spheres, which thanks to the aforementioned aproximation basically makes it a cylinder shape, environment is represented by boxes (parallelograms to be precise, they can be sloped). Functionality includes: player movement with sliding(!) and gravity, requesting which objects are touching given entity (used for determining whether the player is standing on the ground or is in the air), moving non-player entities that can collide and push the player if possible, programmer can also set if the player will stick to the given entity or not (aka riding mechanic used for elevators and moving platforms), there are of course standard body intersection functions too.

Browser version

Play in your browser! You can test the web version of the game below, requires WebAssembly and WebGL.

Raylib 3D game, web version

The browser version is compiled using emscripten in combination with Zig build system. It works okayish, emscripten automatically sets fps equal to your device refresh rate (usually 60), so the game runs slower than usual. It also works on mobile devices, but I didn’t implement proper touch controls yet, so it isn’t really playable there.

Download

You can download portable version for Windows x86_64 here (ZIP).

Note: Should work on Linux too when executed through Wine, but I noticed some issues with number keys not working.

Controls

  • Mouse to look.
  • W, S, A, D to move.
  • 1 to switch into ‘Ray’ mode - Left Mouse to shoot a ray, Right Mouse to delete all rays.
  • 2 to switch into ‘Build’ mode - Tab to toggle between build structures (wall, platform, parallelogram), Arrows to move the structure, +/- (or PageUp/PageDown) to adjust build height. Hold Left Mouse to build a structure and adjust it’s size, Right Mouse to delete new structure, Enter to confirm new structure.
  • 3 to switch into ‘Delete’ mode - Left Mouse to delete the structure you aim at.
  • 4 to switch into ‘Edit’ mode - Left Mouse to select existing structure for editing, Right Mouse or Enter to stop editing. Arrows to move the edited structure, +/- (or PageUp/PageDown) to adjust it’s height or vertical position, Q/E to rotate it along the Z axis, Z/X to rotate it along the X axis, C/V to rotate it along the Y axis.
  • Shift + 1 to switch into ‘Game view’ - Standard first person movement with gravity and collisions, use Space key to jump.
  • Shift + 2 to switch into ‘Free view’ - First person free view without gravity and collisions.
  • G to teleport to ground level.
  • H to show/hide collision boxes.
  • Esc or P to pause the game and then Esc for unpause or Q to quit the game.

Screenshots

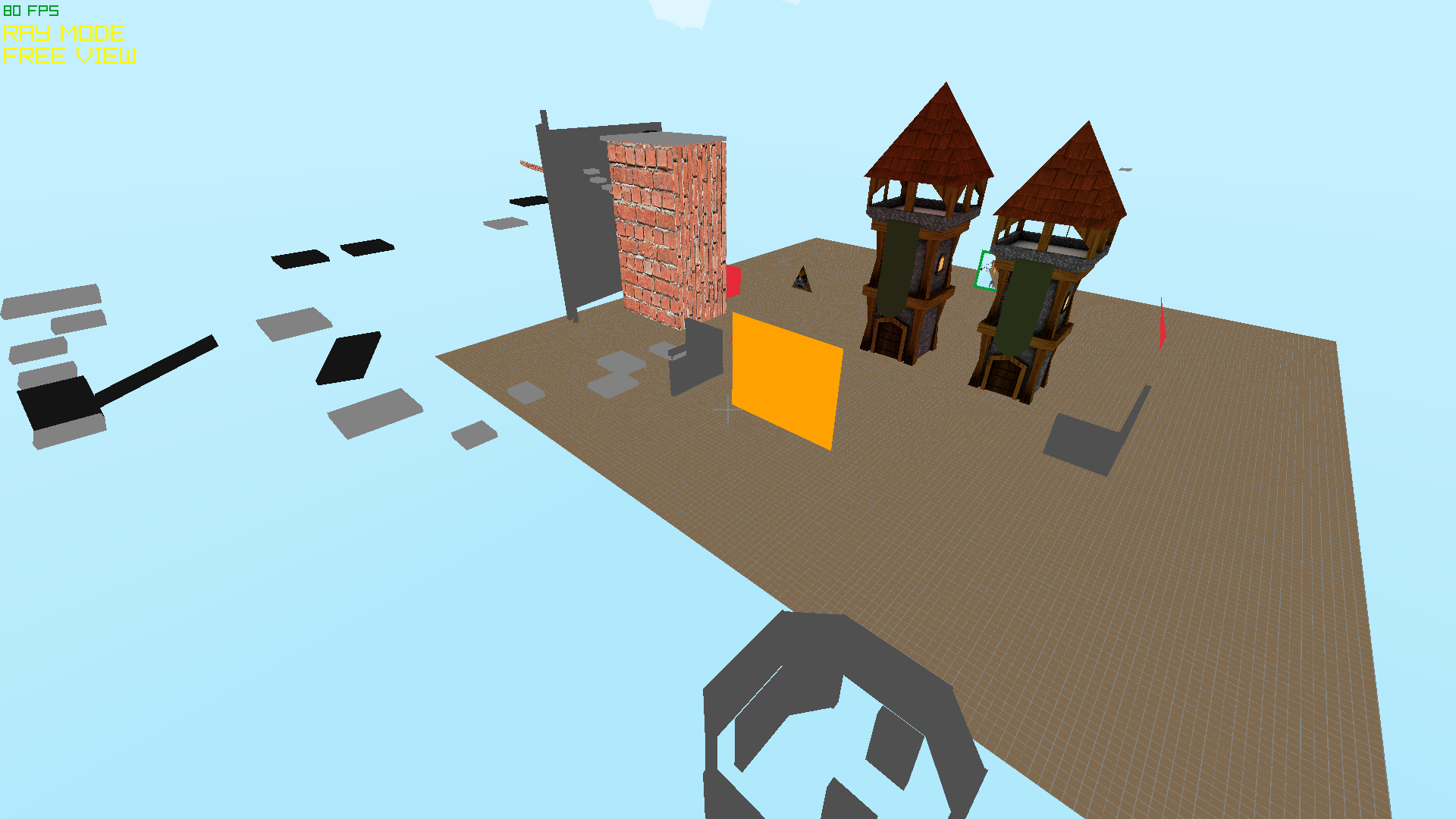

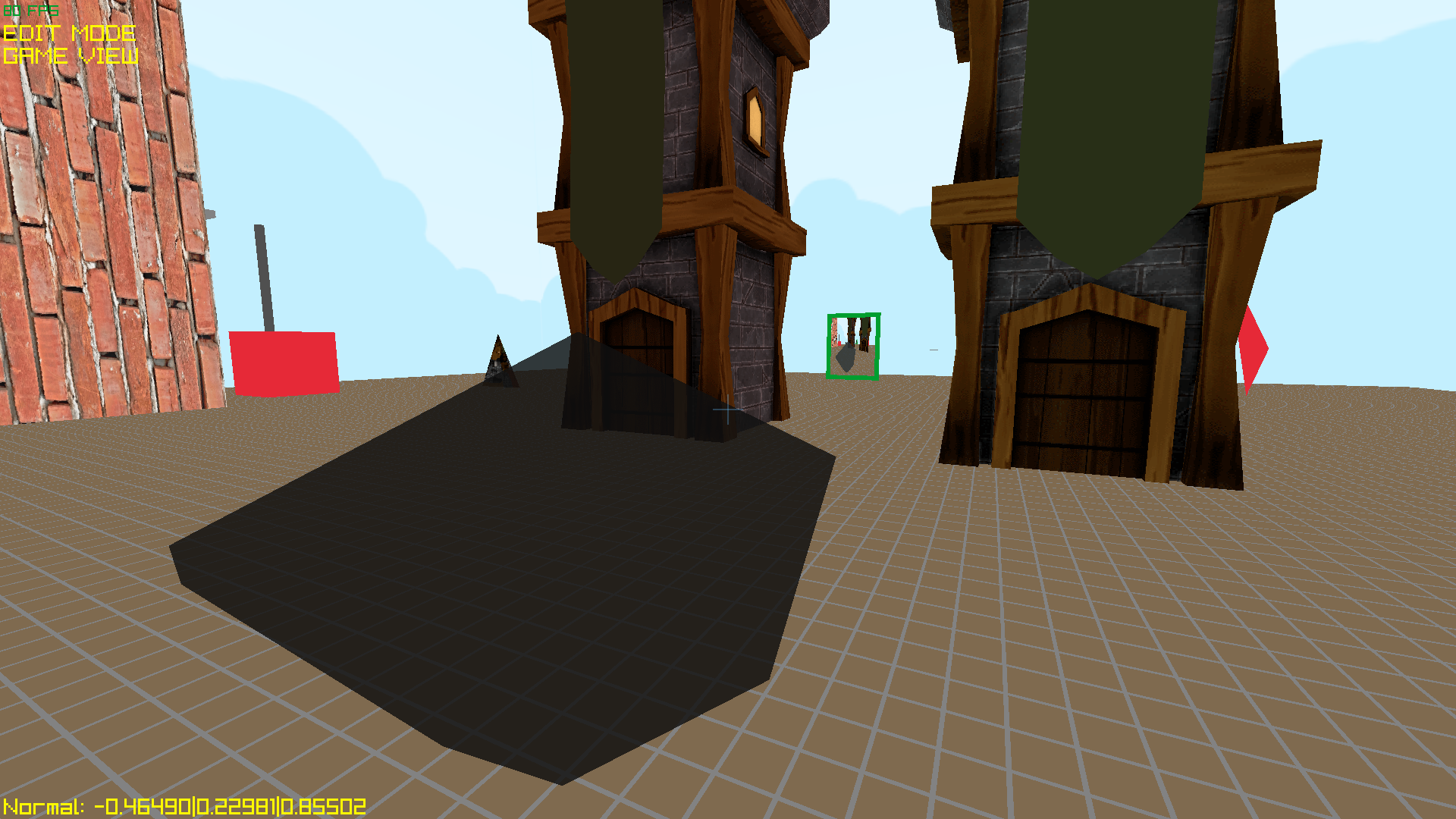

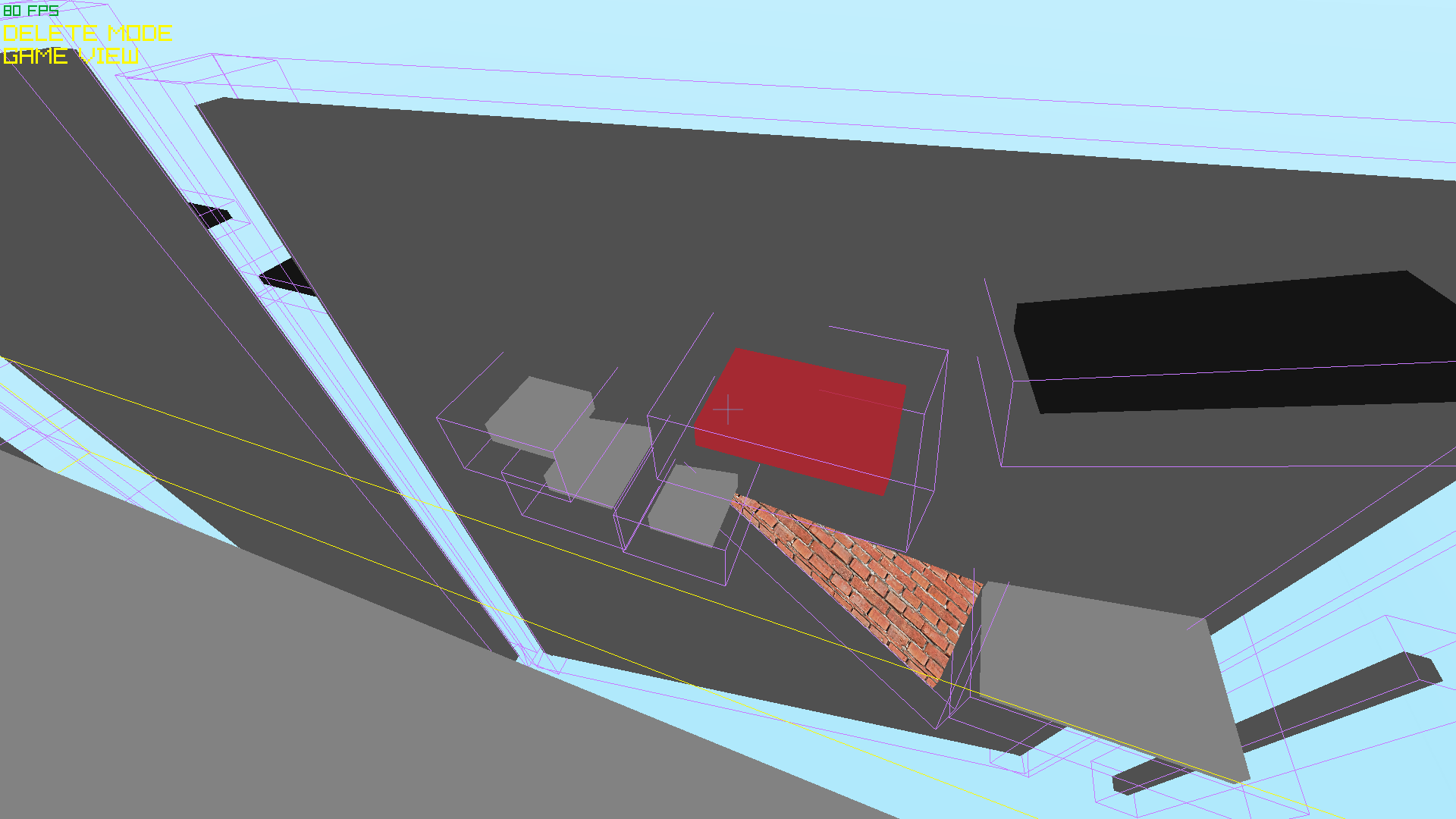

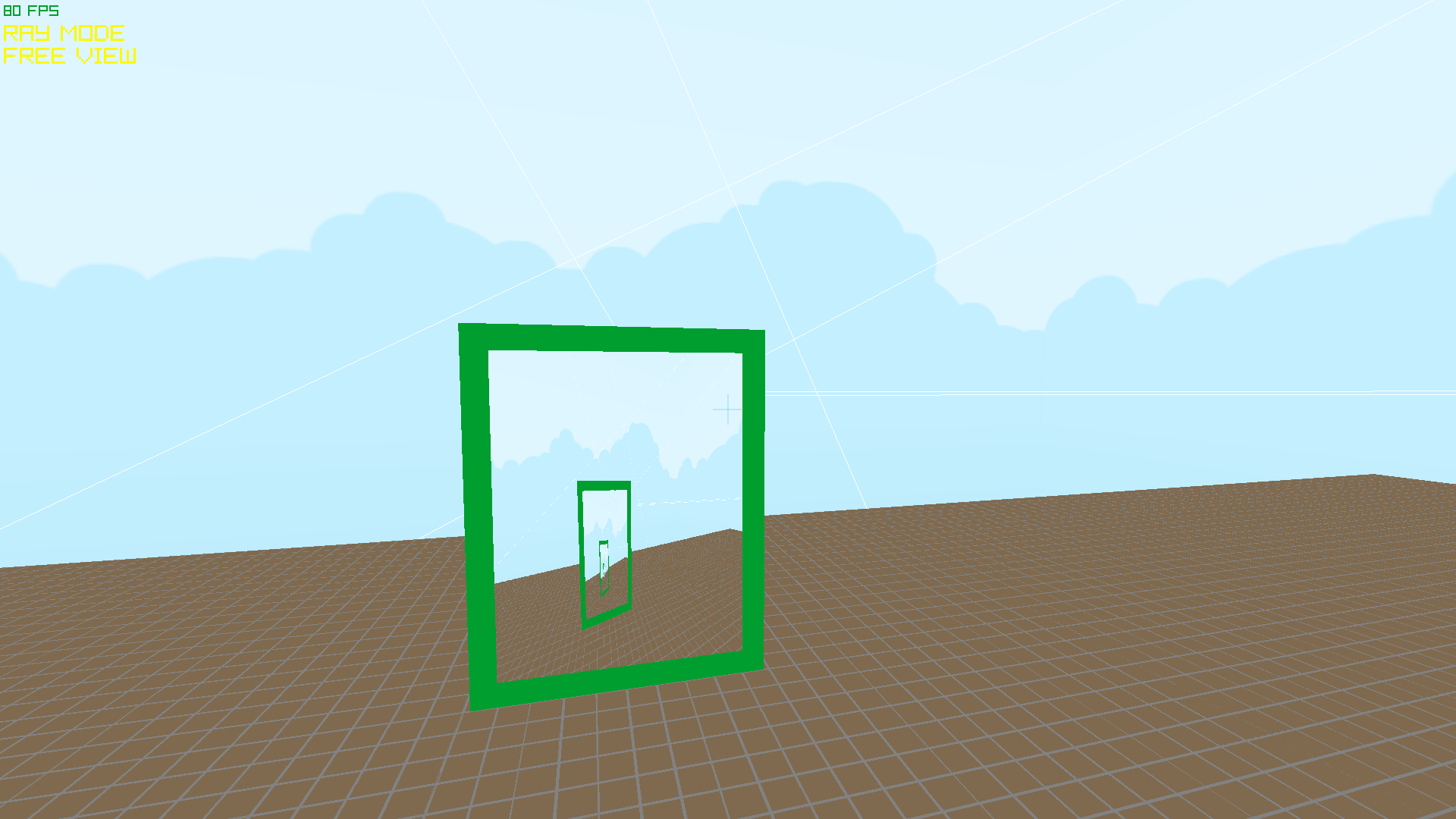

Raylib 3D game - screenshot 5 Raylib 3D game - screenshot 7 Raylib 3D game - screenshot 6 Raylib 3D game - screenshot 8

Since I more enjoy programming my own rendering backends (see my Target shooting project) I don’t actively work on this project anymore. Otherwise the goal would be to improve the physics and in-game editor to the point that this project could be used as a simple FPS/Platformer game engine.
